1. Conversational Voice AI in 2025

LLMs are good conversationalists.

If you've spent much time in free-form dialog with ChatGPT or Claude, you have an intuitive sense that talking to an LLM feels quite natural and is broadly useful.

LLMs are also good at turning unstructured information into structured data.^[1]

New voice AI agents leverage these two LLM capabilities – conversation, and extracting structure from unstructured data – to create a new kind of user experience.

Voice AI is being deployed today in a wide range of business contexts. For example:

• collecting patient data prior to healthcare appointments,
• following up on inbound sales leads,
• coordinating scheduling and logistics between companies, and
• answering the phone for nearly every kind of small business.

On the consumer side, conversational voice (and video) AI is also starting to make its way into social applications and games. And developers are sharing personal voice AI projects and experiments every day on github and social media.

2. About this guide

This guide is a snapshot of the voice AI state of the art.

As more and more developers jump into building realtime, conversational AI applications, materials to help people get started are important.

This guide was directly inspired by Sean DuBois' open-source book WebRTC For the Curious. That book has helped numerous developers get up to speed with WebRTC since it was first released four years ago.^[2]

Building production-ready voice agents is complicated. Many elements are non-trivial to implement from scratch. If you build voice AI apps, you'll likely rely on a framework for many of the things discussed in this document. But we think it's useful to understand how the pieces fit together, whether you are building them all from scratch or not.

The voice AI code examples in this document use the Pipecat open source framework. Pipecat is a vendor-neutral agent layer for realtime AI.^[3] We used Pipecat in this document because:

1. We build with it every day and help to maintain it, so we're familiar with it!
2. Pipecat is currently the most widely used voice AI framework, with teams at NVIDIA, Google, and hundreds of startups leveraging and contributing to the codebase.

We've tried to give general advice in this document, rather than recommend commercial products and services. Where we highlight specific vendors, we do so because they are used by a large percentage of voice AI developers.

Let's get started …

3. The basic conversational AI loop

The basic "job to be done" of a voice AI agent is to listen to what a human says, respond in some useful way, then repeat that sequence.

This is a useful high-level starting point. But if you're building a voice agent, today, you'll need to dive into the details of speech processing, LLM inference, voice generation, and orchestration.

Production voice agents today almost all have a very similar architecture. A voice agent program runs in the cloud and orchestrates the speech-to-speech loop. The agent program uses multiple AI models, some running locally to the agent, some accessed via APIs. The agent program also uses LLM function calling or structured outputs to integrate with back-end systems.

1. Speech is captured by a microphone on a user's device, encoded, and sent over the network to a voice agent program running in the cloud.
2. Input speech is transcribed, to create text input for the LLM.
3. Text is assembled into a context — a prompt — and inference is performed by an LLM. Inference output will often be filtered or transformed by the agent program logic.^[4]
4. Output text is sent to a text-to-speech model to create audio output.
5. Audio output is sent back to the user.

You'll notice that the voice agent program is running in the cloud, and the text-to-speech, LLM, and speech-to-text processing are happening in the cloud. Over the long term, we expect to see more AI workloads running on-device. Today, though, production voice AI is very cloud-centric, for two reasons:

1. Voice AI agents need to use the best available AI models to reliably execute complex workflows at low latency. End-user devices do not yet have enough AI compute horsepower to run the best STT, LLM, and TTS models at acceptable latency.
2. The majority of commercial voice AI agents today are communicating with users via phone calls. For a phone call, there is no end-user device — at least, not one that you can run any code on!

Let's dive into this agent orchestration world and answer questions like:

1. What LLMs work best for voice AI agents?
2. How do you manage the conversation context during a long-running session?
3. How do you connect voice agents to existing back-end systems?^[6]
4. How do you know if your voice agents are performing well?

4. Core technologies and best practices

4.1. Latency

Building voice agents is similar in most ways to other kinds of AI engineering. If you have experience building text-based, multi-turn AI agents, much of your experience from that domain will be useful in voice, as well.

The big difference is latency.

Humans expect fast responses in normal conversation. A response time of 500ms is typical. Long pauses feel unnatural.

It's worth learning how to accurately measure latency — from the end user's perspective — if you are building voice AI agents.

You will often see AI platforms quote latencies that are not true "voice-to-voice" measurements. This is generally not malicious. From the provider side of things, the easy way to measure latency is to measure inference time. So that's how providers get used to thinking about latency. However, this server-side view does not account for audio processing, phrase endpointing delay, network transport, and operating system overhead.

Measuring voice-to-voice latency is easy to do manually.

Simply record the conversation, load the recording into an audio editor, look at the audio waveform, and measure from the end of the user's speech to the beginning of the LLM's speech.

If you build conversational voice applications for production use, it's worthwhile to occasionally sanity check your latency numbers this way. Bonus points for adding simulated network packet loss and jitter when you do these tests!

Measuring true voice-to-voice latency is challenging to do programmatically. Some of the latency happens deep inside the operating system. So most observability tools just measure time-to-first-(audio)-byte. This is a reasonable proxy for total voice-to-voice latency, but again please note that things you don't measure — like phrase endpointing variation and network round-trip time — can become problematic if you have no way to track them.

If you are building conversational AI applications, 800ms voice-to-voice latency is a good target to aim for. This is challenging, though not impossible, to consistently achieve with today's LLMs.

Because latency is so important for voice use cases, latency will come up often throughout this guide.

4.2. LLMs for voice use cases

The release of GPT-4 in March 2023 kicked off the current era of voice AI. GPT-4 was the first LLM that could both sustain a flexible, multi-turn conversation and be prompted precisely enough to perform useful work. Today, GPT-4's successor – GPT-4o – is still the dominant model for conversational voice AI.

Several other models are now as good or better than the original GPT-4 at things that are critical for voice AI:

• Low enough latency for interactive voice conversation.
• Good instruction following.^[7]
• Reliable function calling.^[8]
• Low rates of hallucination and other kinds of inappropriate responses.
• Personality and tone.
• Cost.

But GPT-4o is also better than GPT-4! Especially at instruction following, function calling, and reduced rates of hallucination.

Voice AI use cases are demanding enough that it generally makes sense to use the best available model. At some point this will change, and models that are not state of the art will be good enough for broad adoption in voice AI use cases. But that's not true, yet.

We do expect, though, that Google's Gemini 2.0 Flash, which was released on February 6th, will be widely used for voice AI. Gemini 2.0 Flash is fast, roughly as good as GPT-4o at instruction following, possibly better than GPT-4o at function calling, and priced aggressively.

4.2.1 Latency

The current version of Claude Sonnet 3.5 would be an excellent choice for voice AI, except that inference latency (time to first token) has not been an Anthropic priority. Claude Sonnet median latency is typically double the latency of GPT-4o and Gemini Flash, with a much bigger P95 spread as well.

Table 4.c: Time to first token (TTFT) metrics for OpenAI, Anthropic, and Google APIs - Feb 2025

A rough rule of thumb: LLM time-to-first-token of 500ms or less is good enough for most voice AI use cases. GPT-4o TTFT is typically 400-500ms. Gemini Flash is similar.

Note that GPT-4o mini is not faster than GPT-4o. This often surprises people, because the general expectation is that small models are faster than big models.

4.2.2 Cost comparison

Inference cost has been dropping regularly and rapidly. So, in general, LLM cost has been the least important factor in choosing which LLM to use. Gemini 2.0 Flash's newly announced pricing offers a 10x cost reduction compared to GPT-4o. We'll see what impact this has on the voice AI landscape.

Figure 4.d: Session costs for multi-turn conversations grow super-linearly with duration. A 30-minute session is roughly 100x more expensive than a 3-minute session. You can reduce the cost of long sessions with caching, context summari- zation, and other techniques.

Note that cost increases super linearly as a function of session length. Unless you trim or summarize the context during a session, cost becomes an issue for long sessions. This is particularly true for speech-to-speech models (see below).

The math of context growth makes it tricky to pin down a per-minute cost for a voice conversation. In addition, API providers are increasingly offering token caching, which can offset cost (and reduce latency) but adds to the complexity of estimating what costs will be for different use cases.

OpenAI's automatic token caching for the OpenAI Realtime API is particularly nice. We encourage other platforms to consider implementing similarly simple, transparent caching.^[9]

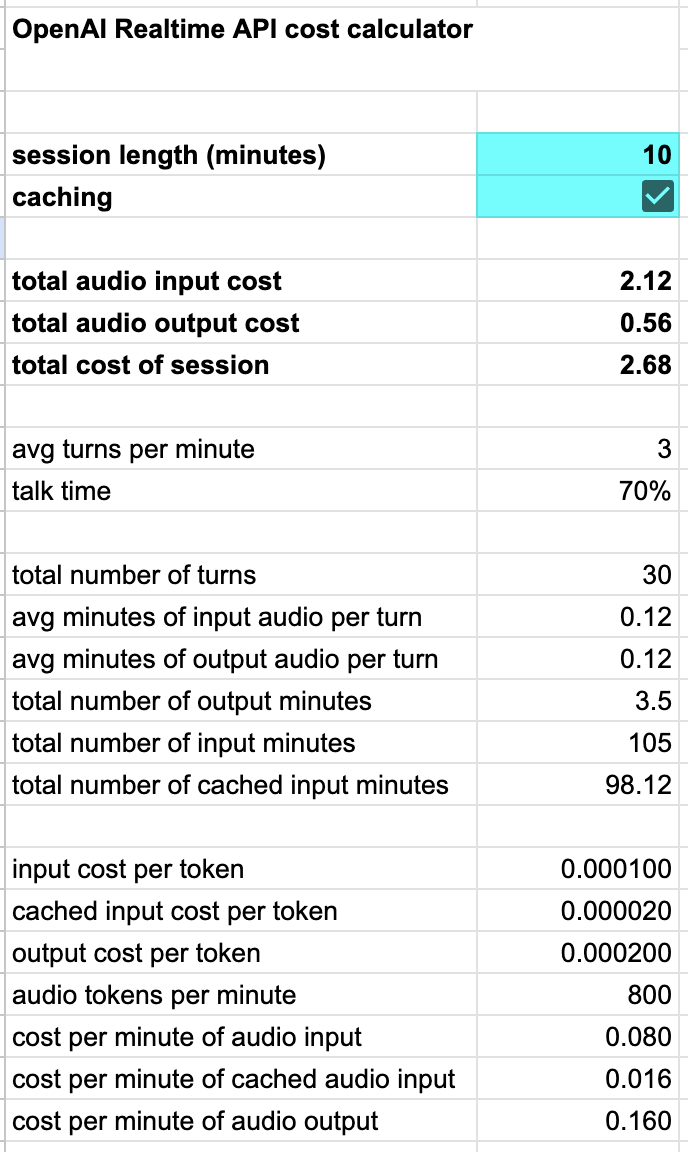

We built a calculator for the OpenAI Realtime API that shows how cost scales with session length, factoring in caching.^[9]

4.2.3 Open source / open weights

Llama 3.3 70B is promising. This open weights model from Meta performs better than the original GPT-4 on relevant benchmarks. But it is not good enough to supplant the current versions of GPT-4o and Gemini for commercial use cases, yet, unless you must run your LLM locally rather than use an API.^[10]

Note that Meta does not offer a first-party, hosted Llama 3.3 70B. Many smaller providers offer Llama inference endpoints, and serverless GPU platforms offer a range of options for deploying your own Llama.

We do expect to see a lot of progress in open source / open weights models in 2025. Llama 4 and future models from Alibaba (Qwen), and DeepSeek seem likely to be good models for voice AI use cases.

4.2.4 What about speech-to-speech models?

Speech-to-speech models are an exciting, relatively new, development. A speech-to-speech LLM can be prompted with audio, rather than text, and can produce audio output directly. This eliminates the speech-to-text and text-to-speech parts of the voice agent orchestration loop.

The potential benefits of speech-to-speech models are:

• Lower latency.
• Improved ability to understand the nuances of human conversation.
• More natural voice output.

OpenAI and Google have both released speech-to-speech APIs. Everyone training large models and building voice AI applications believes that speech-to-speech models are the future of voice AI.

However, current speech to speech models and APIs are not yet good enough for most production voice AI use cases.

Today's best speech-to-speech models definitely sound more natural than today's best text-to-speech models. OpenAI's gpt4o-audio-preview ^[13] model really does sound like a preview of the voice AI future.

Speech-to-speech models aren't yet as mature and reliable as text-mode LLMs, though.

• Lower latency is possible in theory, but audio uses more tokens than text. Larger token contexts are slower for the LLM to process. In practice, today, audio models are slower for multi-turn conversation than text models.^[11]
• Better understanding does seem to be a real benefit, today, of these models. This is particularly apparent for Gemini 2.0 Flash audio input. The story is a bit less clear today for gpt 4o audio preview, which is a smaller and somewhat less capable model than the text-mode GPT-4o.
• Better natural voice output is clearly perceptible, today. But the audio LLMs do have some odd output patterns in audio mode that don't happen in text mode as often: word repetition, discourse markers that sometimes fall into the uncanny valley, and occasional failure to complete sentences.

The biggest of these issues is the larger context size required for multi-turn audio. One approach to squaring the circle and getting the benefits of native audio without the context-size drawbacks is to process each conversation turn as a mixture of text and audio. Use audio for the most recent user message; use text for the rest of the conversation history.

The beta speech to speech offering from OpenAI — the OpenAI Realtime API — is fast and the voice quality is amazing. But the model behind that API is the smaller gpt-4o-audio-preview rather than the full GPT-4o. So instruction following and function calling are not as good. The API also does not have all of the features needed to manage conversation context, and has a variety of early-product bugs and quirks. See detailed notes about the OpenAI Realtime API here.^[12]

The Google Multimodal Live API is another promising — and also currently beta — speech-to-speech service. This API offers a view into the near-future of the Gemini models: long context windows, excellent vision capabilities, fast inference, strong audio understanding, code execution, and search grounding. Like the OpenAI Realtime API, this beta product is not yet a good choice for production voice AI.

We expect to see lots of progress on the speech-to-speech front in 2025. But whether production voice AI applications will begin to use speech-to-speech APIs this year is still an open question.

4.3. Speech-to-text

Speech-to-text — transcription — is the "input" stage for voice AI.

For voice AI use cases, we need very low transcription latency and very low word error rate. Sadly, optimizing a speech model for low latency has a negative impact on accuracy.

Today there are several very good transcription models that are not architected for low latency. Whisper is an open source model that is used in many products and services. It's very good, but with a time-to-first-token of 800ms or so, is rarely used for conversational voice AI use cases.

4.3.1 Deepgram

Most production voice AI agents today use Deepgram for text-to-speech. Deepgram is a commercial speech-to-text AI lab and API platform with a long track record of delivering a very good combination of low latency, low word error rate, and low cost.

Deepgram's models are available as self-serve APIs or as Docker containers that customers can run on their own systems.

Most people start out using Deepgram speech-to-text via the API. Time-to-first token is typically 150ms, for users in the US.

Managing a scalable GPU cluster is a significant ongoing devops job to take on, so moving from the Deepgram API to hosting their models on your own infrastructure is not something you should do without a good reason. Good reasons include:

• Keeping audio/transcription data private. Deepgram offers BAAs and data processing agreements, but some customers will want complete control of audio and transcription data. Customers outside the US may have a legal obligation to keep data inside their own countries or regions. (Note that by default Deepgram's terms of service allow them to train on all data you send to them via their APIs. You can opt out of this on enterprise plans.)
• Reducing latency. Deepgram does not have inference servers outside the US. From Europe, Deepgram's TTFT is ~200ms; from India, ~300ms.

Deepgram offers fine-tuning services, which can help lower word error rates if your use case includes relatively unusual vocabularies, speech styles, or accents.

4.3.2 Prompting can help the LLM.

A large percentage of Deepgram transcription errors result from the very small amount of context that the transcription model has available in a realtime stream.

Today's LLMs are smart enough to work around transcription errors. When the LLM is performing inference it has access to the full conversation context. So you can tell the LLM that the input is a transcription of user speech, and that it should reason accordingly.

You are a helpful, concise, and reliable voice assistant. Your primary goal is to understand the user's spoken requests, even if the speech-to-text transcription contains errors. Your responses will be converted to speech using a text-to-speech system. Therefore, your output must be plain, unformatted text.

When you receive a transcribed user request:
1. Silently correct for likely transcription errors. Focus on the intended meaning, not the literal text. If a word sounds like another word in the given context, infer and correct. For example, if the transcription says "buy milk two tomorrow" interpret this as "buy milk tomorrow".
2. Provide short, direct answers unless the user explicitly asks for a more detailed response. For example, if the user says "what time is it?" you should respond with "It is 2:38 AM". If the user asks "Tell me a joke", you should provide a short joke.
3. Always prioritize clarity and accuracy. Respond in plain text, without any formatting, bullet points, or extra conversational filler.
4. If you are asked a question that is time dependent, use the current date, which is February 3, 2025, to provide the most up to date information.
5. If you do not understand the user request, respond with "I'm sorry, I didn't understand that."

Your output will be directly converted to speech, so your response should be natural-sounding and appropriate for a spoken conversation.

Figure 4.g: Example prompt language for a voice AI agent.

4.3.3 Other speech-to-text options

All of the big cloud services have speech-to-text APIs. None of them are as good as Deepgram, today, for low-latency, general-purpose English language transcription.

But you may want to use Azure AI Speech, Amazon Transcribe, or Google Speech-to-Text if:

• You already have a large committed spend or data processing arrangements with one of these cloud providers.
• Your users will not be speaking English. Deepgram supports a number of non-English languages, but the different labs all have different language strengths. It's worth doing your own testing if you are operating in non-English languages.
• You have a lot of startup credits to spend!

4.3.4 Transcribing with Google Gemini

One way to leverage Gemini's strengths as a low-cost, native audio model is to run two parallel inference processes.

One inference process generates the conversation response. The other inference process transcribes the user's speech.

Each audio input is used for just one turn. The full conversation context is always the audio of the most recent user speech, plus the text transcription of all previous inputs and outputs.

This gives you the best of both worlds: native audio understanding for the current user utterance; reduced token count for the whole context.^[14]

  pipeline = Pipeline(
    [
        transport.input(),
        audio_collector,
        context_aggregator.user(),
        ParallelPipeline(
            [ # transcribe
                input_transcription_context_filter,
                input_transcription_llm,
                transcription_frames_emitter,
            ],
            [ # conversation inference
                conversation_llm,
            ],
        ),
        tts,
        transport.output(),
        context_text_audio_fixup,
    ]
  )


See Pipecat pipeline above for a code-level view of this approach. The logic is as follows.

1. The conversation LLM receives the conversation history as text, plus each new turn of user speech as native audio, and outputs a conversation response.
2. The input transcription LLM receives the same input, but outputs a literal transcription of the most recent user speech.
3. At the end of each conversation turn, the user audio context entry is replaced with the transcription of that audio.

You are an audio transcriber. You are receiving audio from a user. Your job is to transcribe the input au- dio to text exactly as it was said by the user.
You will receive the full conversation history before the audio input, to help with context. Use the full history only to help improve the accuracy of your transcription.
Rules:
- Respond with an exact transcription of the audio input.
- Do not include any text other than the transcrip- tion.
- Do not explain or add to your response.
- Transcribe the audio input simply and precisely.
- If the audio is not clear, emit the special string "".
- No response other than exact transcription, or "", is allowed.


Gemini's per-token costs are so low that this approach is actually cheaper than using Deepgram for transcription.

4.4. Text-to-speech

Text-to-speech is the output stage of the voice-to-voice processing loop.

Voice AI developers choose a voice model/service based on:

• How natural the voices sound^[15]
• Latency^[16]
• Cost
• Language support

Voice options expanded markedly in 2024. New startups appeared on the scene. Best-in-class voice quality went way up. And every provider improved latency.

As is the case for speech-to-text, all of the big cloud providers have text-to-speech products.^[17] But most voice AI developers are not using them, because models from startups are currently better.

The labs that have the most traction for realtime conversational voice models are (in alphabetical order):

• Cartesia – Uses an innovative state-space model architecture to achieve both high quality and low latency.
• Deepgram – Prioritizes latency and low cost.
• ElevenLabs – Emphasizes emotional and contextual realism.
• Rime – Offers customizable TTS models trained exclusively on conversational speech.

All four companies have strong models, engineering teams, and stable and performant APIs. Deepgram and Rime models can be deployed on your own infrastructure.

As with speech-to-text, there is wide variance in quality and support for non-English voice models. If you are building voice AI for non-English use cases, you will likely need to do more extensive testing — test more services and more voices to find a solution that you are happy with.

All voice models will mispronounce words some of the time, and will not necessarily know how to pronounce proper nouns or unusual words.

Some services offer the ability to steer pronunciation. This is helpful if you know in advance that your text output will include specific proper nouns. If your voice service does not support phonetic steering, you can prompt your LLM to output "sounds-like" spellings of specific words. For example, in-vidia instead of NVIDIA.

We expect voice model progress to continue in 2025. Several of the companies listed above have hinted at new models coming in the first half of the year!

4.5. Audio processing

A good voice AI platform or library will mostly hide the complexities of audio capture and processing. But if you build complex voice agents, at some point you'll bump up against bugs and corner cases in audio handling.^[18] So it's worth taking a quick tour of the audio input pipeline.

4.5.1 Microphones and automatic gain control

Microphones today are extremely sophisticated hardware devices coupled to large amounts of low-level software. This is usually great — we get terrific audio from tiny microphones built into mobile devices, laptops, and bluetooth earpieces.

But sometimes this low-level software doesn't do what we want. In particular, bluetooth devices can add several hundred milliseconds of latency to voice input. This is largely outside of your control as a voice AI developer. But it's worth being aware that latency can vary widely depending on what operating system and input device a particular user has.

Figure 4.n

Most audio capture pipelines will apply some amount of automatic gain control to the input signal. Again, this is usually what you want, because this compensates for things like the user's distance from the microphone. You can often disable some automatic gain control, but on consumer-class devices you usually can't disable it completely.

4.5.2 Echo cancellation

If a user is holding a phone up to their ear, or wearing headphones, you don't need to worry about feedback between the local microphone and speaker. But if a user is talking on a speakerphone, or using a laptop without headphones, then good echo cancellation is extremely important.

Echo cancellation is very sensitive to latency, so echo cancellation has to run on the device (not in the cloud). Today, excellent echo cancellation is built into telephony stacks, web browsers, and WebRTC native mobile SDKs.^[19]

So if you're using a voice AI, WebRTC, or telephony SDK, you should have echo cancellation that you can count on "just working" in almost all real-world scenarios. If you are rolling your own voice AI capture pipeline, you will need to figure out how to integrate echo cancellation logic.

4.5.3 Noise suppression, speech and music

Audio capture pipelines for telephony and WebRTC almost always default to "speech mode." Speech can be compressed much more than music, and noise reduction and echo cancellation algorithms are easier to implement for narrower band signals.

Many telephony platforms only support 8khz audio. This is noticeably low-quality by modern standards. If you are routing through a system with this limitation, there's nothing you can do about it. Your users may or may not notice the quality — most people have low expectations for phone call audio.

WebRTC supports very high-quality audio.^[20] Default WebRTC settings are usually 48khz sample rate, single channel, 32 kbs Opus encoding, and a moderate noise suppression algorithm. These settings are optimized for speech. They work across a wide range of devices and environments and are generally the right choice for voice AI.

Music will not sound good with these settings!

If you need to send music over a WebRTC connection, you'll want to:

• Turn off echo cancellation (the user will need to wear headphones).
• Turn off noise suppression.
• Optionally, enable stereo.
• Increase the Opus encoding bitrate (64 kbs is a good target for mono, 96 kbs or 128 kbs for stereo).

4.5.4 Encoding

Encoding is the general term for how audio data is formatted for sending over a network connection.^[21]

Common encodings for real-time communication include:

• Uncompressed audio in 16-bit PCM format.
• Opus — WebRTC and some telephony systems.
• G.711 — a standard telephony codec with wide support.

Figure 4.o: Audio codecs used most often for voice AI

Opus is by far the best of these three options. Opus is built into web browsers, designed from the ground up to be a low-latency codec, and very efficient. It also performs well across a wide range of bitrates, and supports both speech and high-fidelity use cases.

16-bit PCM is "raw audio." You can send PCM audio frames directly to a software sound channel (assuming that the sample rate and data type are correctly specified). Note, however, that this uncompressed audio is not something you generally want to send over an Internet connection. 24khz PCM has a bitrate of 384 kbs. That's a large enough bitrate that many real-world connections from end-user devices will struggle to deliver the bytes in real time.

4.5.5 Server-side noise processing and speaker isolation

Speech-to-text models can usually ignore general ambient noise – street sounds, dogs barking, loud fans close to a mic, keyboard clicks. So the traditional "noise suppression" algorithms that are critical for many human-to-human use cases are not as critical for voice AI.

But one kind of audio processing is particularly valuable for voice AI: primary speaker isolation. Primary speaker isolation suppresses background speech. This can significantly improve transcription accuracy.

Think of trying to talk to a voice agent from an environment like an airport. Your phone mic is likely to pick up a lot of background speech from gate announcements and people walking by. You don't want that background speech in the text transcript the LLM sees!

Or imagine the user who is in their living room with the TV or radio on in the background. Because humans are generally pretty good at filtering out low-volume background speech, people won't necessarily think to turn off their TV or radio before they call into a customer support line.

The best available speaker isolation model is sold by Krisp. Licenses are targeted at enterprise users and are not inexpensive. But for commercial use cases at scale, the improvement in voice agent performance justifies the cost.

  pipeline = Pipeline(
    [
      transport.input(),
      krisp_filter,
      vad_turn_detector,
      stt,
      context_aggregator.user(),
      llm,
      tts,
      transport.output(),
      context_aggregator.assistant(),
    ]
  )


Figure 4.p: Pipecat pipeline with a Krisp processing element

4.5.6 Voice activity detection

A voice activity detection stage is part of almost every voice AI pipeline. VAD classifies audio segments as "speech" and "not speech." We will talk in detail about VAD in 4.7 Turn Detection, below.

4.6. Network transport

4.6.1 WebSockets and WebRTC

Both WebSockets and WebRTC are used by AI services for audio streaming.

WebSockets are great for server-to-server use cases. They are also fine for use cases where latency is not a primary concern, and are a good fit for prototyping and general hacking.

WebSockets shouldn't be used in production for client-server, realtime media connections.

If you are building a browser or native mobile app, and achieving conversational latency matters to your application, you should use a WebRTC connection to send and receive audio from your app.

The major problems with WebSockets for real-time media delivery to and from end-user devices are:

• WebSockets are built on TCP, so audio streams will be subject to head-of-line blocking.
• The Opus audio codec used for WebRTC is tightly coupled to WebRTC's bandwidth estimation and packet pacing (congestion control) logic, making a WebRTC audio stream resilient to a wide range of real-world network behaviors that would cause a WebSocket connection to accumulate latency.
• The Opus audio codec has very good forward error correction, making the audio stream resilient to relatively high amounts of packet loss. (This only helps you if your network transport can drop late-arriving packets and doesn't do head of line blocking, though.)
• WebRTC audio is automatically timestamped, so both playout and interruption logic are trivial.
• WebRTC includes hooks for detailed performance and media quality statistics. A good WebRTC platform will give you detailed dashboards and analytics. This level of observability is somewhere between very hard and impossible to build for WebSockets.
• WebSocket reconnection logic is quite hard to implement robustly. You will have to build a ping/ack framework (or fully test and understand the framework that your WebSocket library provides). TCP timeouts and connection events behave differently on different platforms.
• Finally, good WebRTC implementations today come with very good echo cancellation, noise reduction, and automatic gain control.

Figure 4.r: WebSocket latency caused by head-of-line blocking

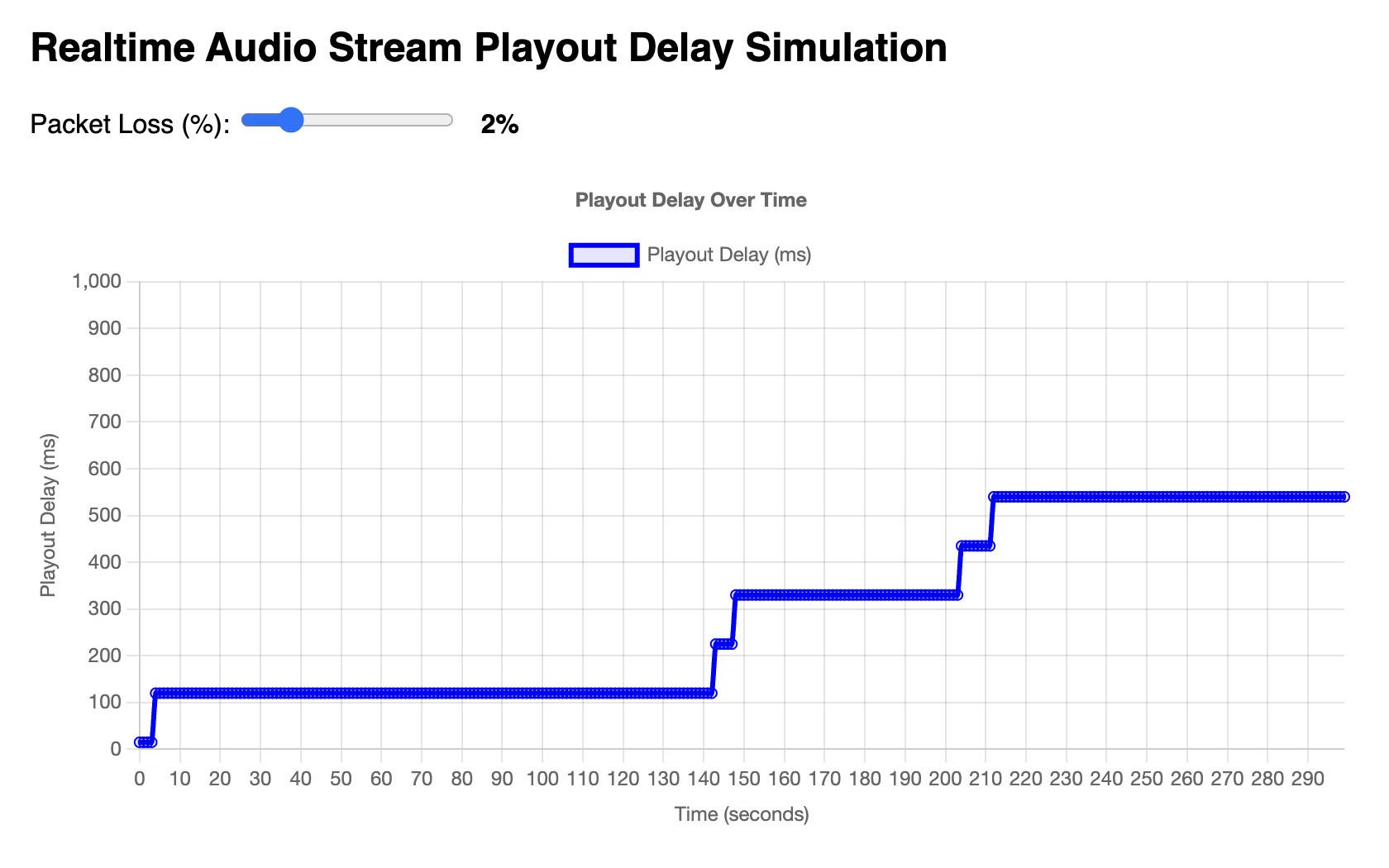

One-way audio latency rises to 500 milliseconds during a simulated 5-minute session with 2% packet loss.

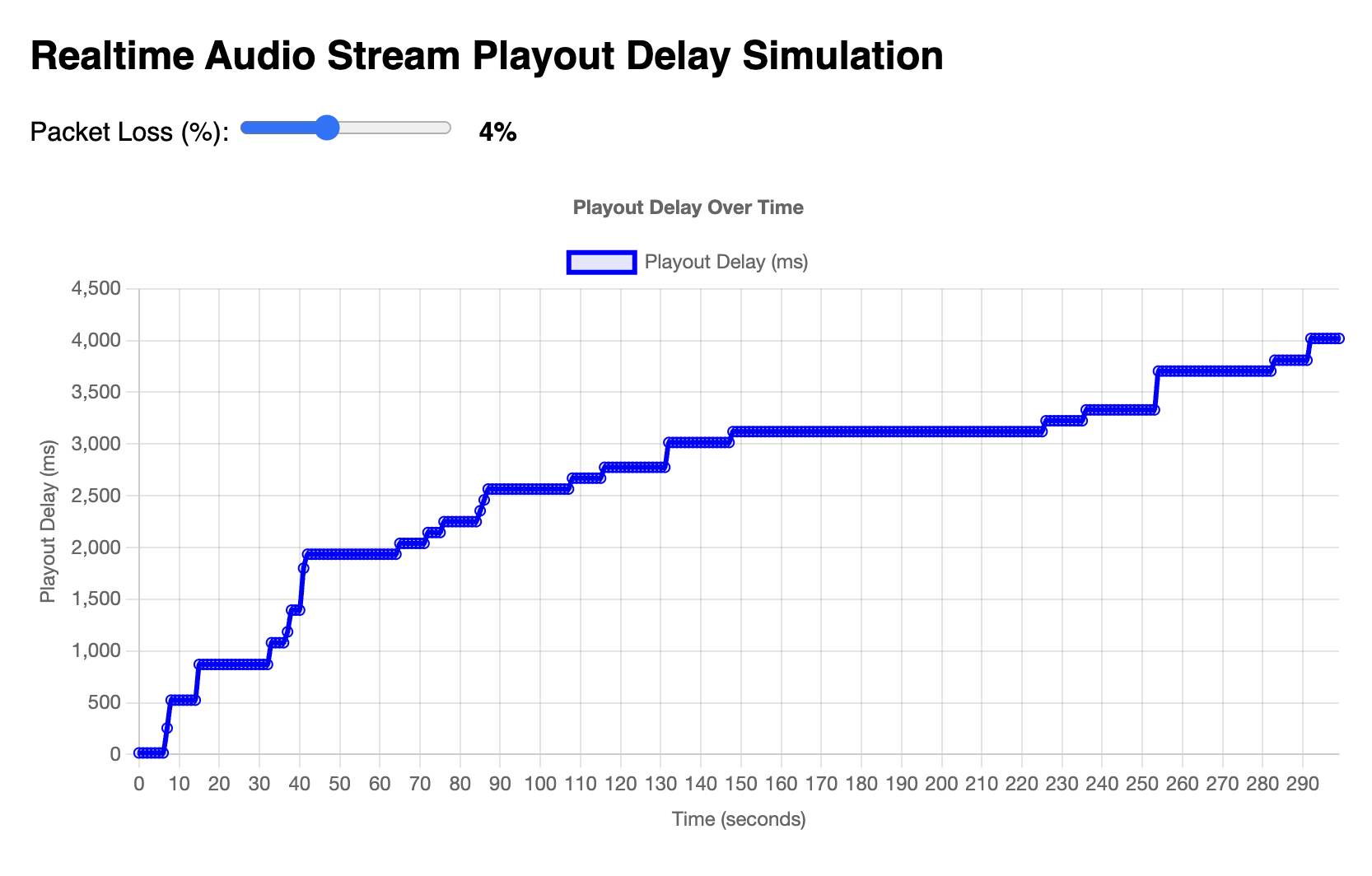

One-way audio latency rises to 4 seconds during a simulated 5-minute session with 4% packet loss. It's likely that in a real session with this amount of packet loss, the WebSocket connection would drop at some point because of underlying TCP timeouts.

4.6.2 HTTP

HTTP is still useful and important for voice AI, too! HTTP is the lingua franca for service interconnection on the Internet. REST APIs are HTTP. Webhooks are HTTP.

Text-oriented inference usually happens via HTTP, so voice AI pipelines usually call out to HTTP APIs for the LLM parts of the conversational loop.

Voice agents also use HTTP when integrating with external services and internal APIs. One useful technique is proxying LLM function calls to HTTP endpoints. This decouples voice AI agent code and devops from function implementations.

Client apps will often want to implement both HTTP and WebRTC code paths in a client app. (There's usually more complexity on the server side. Imagine a chat app that supports both a text mode and a voice mode. Conversation state needs to be accessible via either connection path, which has ramifications for how things like Kubernetes pods and Docker containers are architected.)

The drawback to HTTP is, of course, latency.

• Setting up an encrypted HTTP connection requires multiple network round trips. It's reasonably hard to achieve media connection setup times much lower than 30ms, and realistic time-to-send-first-byte is closer to 100ms even for heavily optimized servers.
• Long-lived, bidirectional HTTP connections are difficult enough to manage that you're usually better off just using WebSockets.
• HTTP is a TCP-based protocol, so the same head-of-line blocking issues that impact WebSockets are an issue for HTTP.
• Sending raw binary data over HTTP is uncommon enough that most APIs opt to base64 encode binary data, which increases the bitrate of media streams.

Which brings us to QUIC …

4.6.3 QUIC and MoQ

QUIC is a new network protocol designed to be the transport layer for the latest version of HTTP (HTTP/3) — and to flexibly support other Internet-scale use cases, too.

QUIC is a UDP-based protocol, and addresses all of the above issues with HTTP. With QUIC you get faster connection times, bidirectional streams, and no head-of-line blocking. Google and Facebook have been steadily rolling out QUIC, so these days, some of your HTTP requests traverse the Internet as UDP, rather than TCP, packets. ^[22]

QUIC will be a big part of the future of media streaming on the Internet. Migration to QUIC-based protocols for realtime media streaming will take time, though. One blocker to building QUIC-based voice agents is that Safari does not yet support the QUIC-based evolution of WebSockets, WebTransport.

The Media over QUIC IETF working group aims to develop a "simple low-latency media delivery solution for ingest and distribution of media." As with all standards, hashing out how to support the widest possible array of important use cases with the simplest possible building blocks is not easy. People are excited about using QUIC for on-demand video streaming, large-scale video broadcast, live video streaming, low-latency sessions with large numbers of participants, and low-latency 1:1 sessions.

Realtime voice AI use cases are growing at just the right time to influence the development of the MoQ standard.

4.6.4 Network routing

Long-haul network connections are problematic for latency and real-time media reliability, no matter what the underlying network protocol is.

For real time media delivery, you want your servers to be as close to your users as possible.

For example, round trip packet time from a user in the UK to a server hosted by AWS us-west-1 in Northern California will typically be about 140 milliseconds. In comparison, RTT from that same user to AWS eu-west-2 would generally be 15 milliseconds or less.

Figure 4.u: RTT from a user in the UK to AWS us-west-1 is ~100ms more than to AWS eu-west-2

That's a difference of more than 100 milliseconds — ten percent of your latency "budget" if your voice-to-voice latency target is 1,000 milliseconds.

Edge routing

You may not be able to deploy servers close to all of your users.

Achieving a 15ms RTT to users everywhere in the world requires deploying to at least 40 global data centers. That's a big devops job. And if you're running workloads that require GPUs, or relying on services that aren't globally deployed themselves, it might be impossible.

You can't cheat the speed of light.^[24] But you can try to avoid route variability and congestion.

The key is to keep your public Internet routes as short as possible. Connect your users to an edge server close to them. From there, use private routes.

This edge routing reduces median packet RTT. The UK → Northern California route over a private backbone is likely to be about 100 milliseconds. 100 ms (the long-haul private route) + 15 ms (the first hop over the public Internet) = 115 ms. This private route median RTT is 25ms better than the public route median RTT.

Figure 4.v: Edge route from the UK to AWS us-west-1. The first hop over the public network still has an RTT of 15ms. But the long route to Northern California over the private network has an RTT of 100ms. The total RTT of 115ms is 25ms faster than the public route from the UK to us-west-1. It's also significantly less variable (less packet loss and lower jitter).

Even more critical than median RTT improvement, though, is improved delivery reliability and lower jitter.^[25] The P95 RTT of a private route will be significantly lower than the P95 of a public route.^[26]

This means that realtime media connections over long-haul public routes will be measurably more laggy than connections that use private routes. Recall that we're trying to deliver each audio packet as quickly as possible, but that we have to play the audio packets in order. A single delayed packet forces us to expand our jitter buffer, holding onto other received packets until the delayed packet arrives. (Or, until we decide it's taken too long and we fill the gap with either fancy math or glitchy audio samples.)

Figure 4.w: The jitter buffer. A larger jitter buffer translates directly to a larger perceived delay in audio and video. Keeping jitter buffers as small as possible contributes significantly to a good user experience.

A good WebRTC infrastructure provider will offer edge routing. They will be able to show you where they have server clusters and provide metrics that show their private route performance.

4.7. Turn detection

Turn detection means determining when the user is finished talking and expects the LLM to respond.

In the academic literature, various aspects of this problem are referred to as phrase detection, speech segmentation, and endpointing. (The fact that there is academic literature about this is a clue that it's a non-trivial problem.)

We (humans) do turn detection every time we talk to anyone else. And we don't always get it right!^[27]

So turn detection is a hard problem, and there aren't any perfect solutions. But let's talk about the various approaches that are in common use.

4.7.1 Voice activity detection

Currently, the standard way to do turn detection for voice AI agents is to assume that a long pause means the user has finished speaking.

Voice AI agent pipelines identify pauses using a small, specialized voice activity detection model. A VAD model has been trained to classify audio segments as speech or non-speech. (This is much more robust than trying to identify pauses based only on volume level.)

You can run VAD on either the client-side of a voice AI connection, or on the server. If you need to do significant audio processing on the client anyway, you'll probably need to run VAD on the client to facilitate that. For example, maybe you are identifying wake words on an embedded device, and only sending audio over the network if you detect a wake word at the beginning of a phrase. Hey, Siri …

Generally, though, it's a bit simpler to just run VAD as part of the voice AI agent processing loop. And if your users are connecting via telephone, you don't have a client where you can run VAD, so you have to do it on the server.

The VAD model used most often for voice AI is Silero VAD. This open source model runs efficiently on CPU, supports multiple languages, works well for both 8khz and 16khz audio, and is available as wasm packages for use in web browsers. Running Silero on a realtime, mono audio stream normally takes less than 1/8th of a typical virtual machine CPU core.

A turn detection algorithm will typically have a few configuration parameters:

• Length of pause required for end of turn.
• Length of speech segment required to trigger a start speaking event.
• The confidence level for classifying each audio segment as speech.
• Minimum volume for speech segments.

  # Pipecat's names and default values
  # for the four configurable VAD
  # parameters
  VAD_STOP_SECS = 0.8
  VAD_START_SECS = 0.2
  VAD_CONFIDENCE = 0.7
  VAD_MIN_VOLUME = 0.6
  ...

Figure 4.y

Tuning these parameters can improve turn detection behavior a lot for specific use cases.

4.7.2 Push-to-talk

The obvious problem with basing turn detection on pauses in speech is that sometimes people pause but aren't finished talking.

Individual speaking styles vary. People pause more in some kinds of conversations than in others.

Setting a long pause interval creates stilted conversations — a very bad user experience. But with a short pause interval, the voice agent will frequently interrupt the user — also a bad user experience.

The most common alternative to pause-based turn detection is push-to-talk. Push-to-talk means requiring that the user push or hold a button when they start speaking, and push the button again or release it when they are finished speaking. (Think about how old-school walkie-talkies work.)

Turn detection is unambiguous with push-to-talk. But the user experience is not the same as just talking.

Push-to-talk isn't possible for telephone voice AI agents.

4.7.3 Endpoint markers

You can also use specific words as end-of-turn markers. (Think of truckers talking on CB radios saying "over.")

The easiest way to identify the specified endpoint markers is to run a regular expression match against each transcription fragment.

Using explicit endpoint markers is fairly uncommon, because users have to learn to talk this way. But it can work very well for specialized use cases.

For example, we saw a nice demo last year of a writing assistant that someone had built for themselves as a side project. They used a variety of command phrases to indicate turn endpoints and to switch between modes.

4.7.4 Context-aware turn detection

When humans use turn detection, they use a variety of cues:

• Identification of filler words like "um" as being likely to indicate continued speech.
• Grammatical structure.
• Knowledge of patterns, such as telephone numbers having a specific number of letters.
• Intonation and pronunciation patterns like drawing out the final word before a pause.

Deep learning models are very good at identifying patterns. LLMs have a lot of latent grammatical knowledge and can be prompted to do phrase endpointing. Smaller audio classification models can be trained on intonation and pronunciation patterns.

As voice agents become more and more commercially important, we expect to see new models that are trained to perform context-aware turn detection for voice AI.

There are two main approaches:

1. Train a small turn detection model that can run in real time. Use this model in conjunction with VAD. Set a short VAD timeout, run the turn detection model in-line after the VAD, and only send user speech down the pipeline when the turn detection model has a high confidence that a phrase endpoint is identified. The Pipecat community has developed a small, open source, native audio model that performs well for specific phrase endpointing tasks in English.^[28]
2. Use a large LLM and a few-shot prompt to perform turn detection. Large LLMs are usually too slow to use in-line, blocking the pipeline. To work around this, you can split the pipeline and do turn detection and "greedy" conversation inference in parallel. Perform conversation inference every time VAD identifies a short pause. But buffer the conversation output until a phrase endpoint is identified.


    [
      transport.input(),
      vad,
      audio_accumulater,
      ParallelPipeline(
      [
        FunctionFilter(filter=block_user_stopped_speaking),
      ],
      [
        ParallelPipeline(
        [
          classifier_llm,
          completeness_check,
        ],
        [
          tx_llm,
          user_aggregator_buffer,
        ],
        )
      ],
      [
        conversation_audio_context_assembler,
        conversation_llm,
        bot_output_gate,
      ],
      ),
      tts,
      transport.output(),
      context_aggregator.assistant(),
    ],

Figure 4.z: Pipecat pipeline code for context-aware turn detection using Gemini 2.0 Flash native audio input. Turn detection and greedy conversation inference run in parallel. Output is gated until the turn detection inference detects a phrase endpoint.

4.8. Interruption handling

Interruption handling is allowing the user to interrupt the bot. Interruptions are a normal part of conversation, so handling interruptions gracefully is important.

To implement interruption handling, you need every part of your pipeline to be cancellable. You also need to be able to stop audio playout on the client very quickly.

Generally, the framework you're building with will take care of stopping all processing when an interruption is triggered. But if you're directly using an API that sends you raw audio frames faster than realtime, you'll probably have to stop playout and flush audio buffers manually.

4.8.1 Avoiding spurious interruptions

Several sources of unintended interruptions are worth noting.

1. Transient noises classified as speech. In general, Silero VAD^[29] is very good at separating speech from "noise." But certain kinds of short, sharp, initial audio will have moderate speech confidence attached to them when they appear at the beginning of an utterance. Coughing and keyboard clicks both fall into this category. You can adjust the VAD start segment length and confidence level to try to minimize this source of interruptions. The trade-off is that lengthening the start segment length and raising the confidence threshold will create problems for very short phrases that you do want to detect as complete utterances. For example, Pipecat's standard VAD settings will sometimes miss a quick "yep" from some speakers.
2. Echo cancellation failures. Echo cancellation algorithms aren't perfect. A transition from silence to speech playout is particularly challenging. If you've done a lot of voice agent testing, you've probably heard your bot interrupt itself right when it starts talking. The culprit is echo cancellation allowing a little bit of the initial speech audio to feed back into your microphone. The minimum VAD start segment length helps to avoid this problem. So does applying exponential smoothing^[30] to the audio volume level to avoid sharp volume transitions.
3. Background speech. The VAD model will not distinguish between user speech and background speech. If the background speech is louder than your volume threshold, background speech will trigger an interruption. A speaker isolation audio processing step can reduce spurious interruptions caused by background speech. See the discussion in the 4.5.5 Server-side noise processing and speaker isolation section, above, about the Krisp speaker isolation model.

4.8.2 Maintaining accurate context after an interruption

Because LLMs generate output faster than realtime, when an interruption occurs you will often have LLM output queued up to send to the user.

Usually, you want the conversation context to match what the user actually heard (rather than what your pipeline generated faster than realtime).

You are probably also saving the conversation context as text.^[31]

So you need a way to figure out what text the user actually heard!

The best speech-to-text services can report word-level timestamp data. Use these word-level timestamps to buffer and assemble assistant message text that matches the audio heard by the user.

4.9. Managing the conversation context

LLMs are stateless. This means that for a multi-turn conversation, you need to feed all of the previous user and agent messages — and other configuration elements — back into the LLM each time you generate a new response.

For each inference operation, you can send the LLM:

• System instructions
• Conversation messages
• Tools (functions) for the LLM to use
• Configuration parameters (for example, temperature)

      {
      "type": "timestamps",
      "context_id": "test-01",
      "status_code": 206,
      "done": false,
      "word_timestamps": {
        "words": [
        "What's",
        "the",
        "capital",
        "of",
        "France?"
        ],
        "start": [
        0.02,
        0.3,
        0.48,
        0.6,
        0.8
        ],
        "end": [
        0.3,
        0.36,
        0.6,
        0.8,
        1
        ]
      }
      }


Turn 1:
  User: What's the capital of France?
  LLM: The capital of France is Paris.
Turn 2:
  User: What's the capital of France?
  LLM: The capital of France is Paris.
  User: Is the Eiffel Tower there?
  LLM: Yes, the Eiffel Tower is in Paris.
Turn 3:
  User: What's the capital of France?
  LLM: The capital of France is Paris.
  User: Is the Eiffel Tower there?
  LLM: Yes, the Eiffel Tower is in Paris.
  User: How tall is it?
  LLM: It is about 330 meters tall.


Figure 4.ab: Sending the entire conversation history to an LLM every turn.

4.9.1 Differences between LLM APIs

This general design is the same for all the major LLMs today.

But there are differences between the various providers' APIs. OpenAI, Google, and Anthropic all have different message formats, differences in the structure of tools/functions definitions, and differences in how system instructions are specified.

There are third-party API gateways and software libraries that translate API calls into OpenAI's format. This is valuable, because being able to switch between different LLMs is useful. But these services can't always abstract the differences away properly. New features and features unique to each API aren't always supported. (And sometimes there are bugs.)

To abstract or not to abstract remains a question, in these relatively early days of AI engineering.^[32]

Pipecat, for example, currently translates messages to and from OpenAI format when contexts are created or saved to persistent storage. But Pipecat does not (currently) try to automatically translate between tool definition formats.

4.9.2 Modifying the context between turns

Having to manage multi-turn context adds to the complexity of developing a voice AI agent. On the other hand, it can be useful to retroactively modify the context!

LLMs don't always need the full conversation context. Shortening or summarizing the context can reduce latency and cost. And carefully tailoring the context during the course of a session can significantly increase the reliability of a voice AI agent. More on this topic in the Scripting and instruction following section, below.

def from_standard_message(self, message):
 """Convert standard format message to Anthropic format.
 Handles conversion of text content, tool calls, and tool results.
 Empty text content is converted to "(empty)".
 Args:
  message: Message in standard format:
   {
    "role": "user/assistant/tool",
    "content": str | [{"type": "text", ...}],
    "tool_calls": [{"id": str, "function": {"name": str, "arguments": str}}]
   }
 Returns:
  Message in Anthropic format:
  {
   "role": "user/assistant",
   "content": str | [
    {"type": "text", "text": str} |
    {"type": "tool_use", "id": str, "name": str, "input": dict} |
    {"type": "tool_result", "tool_use_id": str, "content": str}
   ]
  }
 """
 if message["role"] == "tool":
  return {
   "role": "user",
   "content": [
    {
     "type": "tool_result",
     "tool_use_id": message["tool_call_id"],
    },
   ],
  }
 if message.get("tool_calls"):
  tc = message["tool_calls"]
  ret = {"role": "assistant", "content": []}
  for tool_call in tc:
   function = tool_call["function"]
   arguments = json.loads(function["arguments"])
   new_tool_use = {
    "type": "tool_use",
    "id": tool_call["id"],
    "name": function["name"],
    "input": arguments,
   }
   ret["content"].append(new_tool_use)
  return ret
 # check for empty text strings
 content = message.get("content")
 if isinstance(content, str):
  if content == "":
   content = "(empty)"
 elif isinstance(content, list):
  for item in content:
   if item["type"] == "text" and item["text"] == "":
    item["text"] = "(empty)"
 return message


Figure 4.ac: Pipecat code that converts context messages from OpenAI to Anthropic format.

4.10. Function calling

Production voice AI agents rely heavily on LLM function calling.

Function calling is used for:

• Fetching information for retrieval augmented generation.
• Interacting with existing back-end systems and APIs.
• Integration with telephony tech stacks — call transfers, queuing, sending DTMF tones.
• Script following – function calls that implement workflow state transitions.

4.10.1 Function calling reliability in the voice AI context

As voice AI agents are deployed for increasingly complex use cases, reliable function calling has become more and more critical.

SOTA LLMs are getting steadily better at function calling, but voice AI use cases tend to stretch LLM function calling capabilities to their limits.

Voice AI agents tend to:

• Use functions in multi-turn conversations. In multi-turn conversations, the prompts develop more and more complexity as user and assistant messages are added every turn. This prompt complexity degrades LLM function calling capabilities.
• Define multiple functions. It's common to need five or more functions for a voice AI workflow.
• Call functions several times during a session.

All of these attributes seem to be somewhat out of distribution relative to the data used to train current-generation LLMs.

Different LLMs and different updates of the same model — are differentially good at function calling, and differently good at different kinds of function calling in different circumstances.^[33]

It's important to develop evals that test the function calling performance of your app. See the 7. Voice AI evals section, below.

4.10.2 Latency

Function calls add latency — potentially a lot of latency — for four reasons:

1. When the LLM decides a function call is necessary, it outputs a function call request message. Your code then does whatever it does for the particular function requested, then calls inference again with the same context plus a function call result message. So any time a function is called, you have to do two inference calls instead of one.
2. The function call request can't be streamed. We need the entire function call request message before we can execute the function call.
3. Adding function definitions to a prompt can increase latency. This is a bit nebulous; it would be good to develop latency-oriented evals specifically to measure additional latency from adding function definitions to a prompt. But it's clear that some APIs, at least some of the time, have higher median TTFTs when tool use is enabled, whether functions are actually called or not.
4. Your functions may be slow! If you are interfacing with a legacy back-end system, your function may take a long time to return.

You need to provide fairly quick audio feedback each time a user finishes speaking. If you know that your function calls might take a long time to return, you probably want to output speech telling the user what's happening and asking them to wait.

You can either:

• Always output a message before executing the function call. "Please wait while I do X for you …"
• Set a watchdog timer, and output a message only if the function call loop hasn't completed before the timer fires. "Still working on this, please wait just another moment …"

Or both, of course. And you can play background music while executing long-running function calls.^[34]

4.10.3 Handling interruptions

LLMs are trained to expect function call request messages and function call response messages as matched pairs.

This means that:

1. You need to stop your voice-to-voice inference loop until all function calls complete. See below for notes on 4.10.6 Asynchronous function calls.
2. If a function call is interrupted and will never complete, you need to put a function call response message into the context that indicates … something.

The rule here is that if the LLM calls a function, you need to put a request/response pair of messages into the context.

If you put a dangling function call request message into the context and then continue the multi-turn conversation, you are creating a context that diverges from how the LLM was trained. (Some APIs will not allow this at all.)

If you don't put a request/response pair into the context at all, you are teaching the LLM (via in-context learning) not to call the function.^[35] Again, the results are unpredictable and probably not what you want.

4.10.4 Streaming mode and function call chunks

In voice AI agent code, you almost always execute conversation inference calls in streaming mode. This gives you the first few content chunks as quickly as possible, which is important for voice-to-voice response latency.

Streaming mode and function calling make for an awkward pairing, though. Streaming isn't helpful for function call chunks. You can't call a function until you've assembled the LLM's complete function call request message.^[36]

Here's some feedback for inference providers as they continue to evolve their APIs: offer a mode that delivers function call chunks atomically, and isolated from any streamed content chunks. This would significantly reduce the complexity of client-side code.

4.10.5 How and where to execute function calls

When the LLM emits a function call request, what do you do? Here are some commonly used patterns:

• Execute a function call with the same name as the requested function, directly in your code. This is what you see in almost every LLM function calling docs example.
• Map the request to an operation, based on arguments and context. Think of this as asking the LLM to do a generic function call, which you disambiguate in your code. The advantage of this pattern is that LLMs are usually better at function calling if you give them a small number of functions to choose between.^[37]
• Proxy the function call to the client. This pattern is available to you in an application (not telephony) context. For example, imagine a get_location() function. You want the current location of the user's device, so you need to hook into the geo lookup API on that device.
• Proxy the function call to a network endpoint. This is often a particularly useful pattern in enterprise contexts. Define a set of functions that interact with internal APIs. Then create an abstraction in your code that executes these function calls as HTTP requests.

Figure 4.ae: Function calling patterns

4.10.6 Asynchronous function calls

Sometimes you don't want to return from a function call right away. You know your function will take an unpredictably long time to complete. Maybe it won't complete at all. Maybe you even want to kick off a long-running process that can add to the context in an open-ended way over time.

Imagine a walking tour app that lets the user express interest in things they might see during the tour. "If we pass by any places where famous writers have lived, I'd particularly like to hear about those." One nice architecture for this would be for the LLM to call a function whenever a user expresses a specific interest. That function would start a background process, injecting information into the context when anything relevant to the interest is found.

You can't do this directly, today, using LLM function calling. Functions have to return immediately. Inference has to block until function calls complete.

So instead of defining a function with this shape:

• register_interest_generator(interest: string) -> Iterator[Message]

You need to do something like this:

• create_interest_task_and_return_success_immediately(interest: string, context_queue_callback: Callable[Message]) -> Literal["success", "failure"]

For more discussion of this topic, see 5.2 Performing async inference tasks, below.

As LLMs and APIs evolve to better support multimodal conversational use cases, we'd love to see LLM researchers explore ideas around asynchronous functions and long-running functions that act as generators.

4.10.7 Parallel and composite function calling

Parallel function calling means that the LLM can request multiple function calls in a single inference response. Composite function calling means that the LLM can flexibly call several functions in a row, chaining functions together to perform complex operations.

These are exciting capabilities!

But they also add to the variability of voice agent behavior. Which means you need to develop evals and monitoring that tests whether parallel and composite function calling is working as expected in real-world conversations.

user: Claude, load the most recent picture I have of the Eiffel Tower.
function call request: <list_files()>
function call response: <['eiffel_tower_1735838843.jpg', 'empire_state_building_1736374013.jpg', 'eiffel_tower_1737814100.jpg', 'eiffel_tower_1737609270.jpg',
'burj_khalifa_1737348929.jpg']
function call request: <load_resource('eiffel_tower_1737814100.jpg')>
function call response: <{ 'success': 'Image loaded successfully', 'image': … }>
assistant: I have loaded an image of the Eiffel Tower. The image shows the Eiffel
Tower on a cloudy day.

Figure 4.af: Composite function calling. Here, the LLM figures out how to chain two functions – list_files() and load_resource() – to respond to a specific instruction. The two functions are described in a tools list. But this chaining behavior is not prompted for.

Handling parallel function calling also makes your agent code more complex. We often recommend that people disable parallel function calling unless there is a specific use for it

Composite function calling feels like magic when it works well. One of our favorite early glimpses of composite function calling was seeing Claude Sonnet 3.5 chain together functions to load resources from files based on filename and timestamp.

Composite function calling is a relatively new capability of SOTA LLMs. Performance is "jagged" – surprisingly good, but frustratingly inconsistent.

4.11. Multimodality

LLMs now consume and produce audio, images, and video in addition to text.

We talked earlier about speech-to-speech models.^[38] These are models capable of taking audio as input and producing audio as output.

The multimodal capabilities of SOTA models are advancing rapidly.

GPT-4o, Gemini 2.0, and Claude Sonnet 3.5 all have very good vision capabilities – they all accept images as input. Vision support in these models started out focused on describing the image content and transcribing text that appears in images. Capabilities expand with each release. Counting objects, identifying bounding boxes, and better understanding of the relationship between objects in an image are all useful abilities that are available in newer releases.

Gemini 2.0 Flash can do inference on video input, including understanding both video and audio tracks.^[39]

One interesting new class of voice-enabled applications is the assistant that can "see" your screen and help perform tasks on your local machine or a web browser. A number of people have built scaffolding for voice driven web browsing.

Several programmers we know talk as much as they type, these days. It's fairly easy to wire up voice input to drive Cursor or Windsurf.^[40] It's a bit trickier to wire up screen capture so your AI programming assistant can see exactly what you see – code in your editor, UI state of the web app you're building, a Python stacktrace in your terminal. But this full loop with an AI programming assistant feels like another of the glimpses of the future we've talked about throughout this document.^[41]

Right now, all the SOTA models support multimodality in different combinations.

• GPT-4o (gpt-4o-2024-08-06) has text and image input, and text output.
• gpt-4o-audio-preview has text and audio input, and text and audio output. (No image input.)
• Gemini Flash 2.0 has text, audio, image, and video input, but only offers text output.

Multimodal support is evolving rapidly, and we expect the above list to be out of date soon!

For voice AI, the biggest challenge with multimodality is that audio and images use a lot of tokens, and more tokens mean higher latency.

For some applications, maintaining latency while also keeping images in the conversational context presents a really difficult engineering challenge.

Imagine a personal assistant agent that runs all the time on your computer and watches your screen as part of its work loop. You might like to be able to ask, "I was about to read a tweet an hour ago when I got that phone call, and then I forgot about it and closed the tab. What was that tweet?"

An hour ago equates to almost a million tokens. Even if your model can accommodate a million tokens in its context^[42], the cost and the latency of doing a multi-turn conversation with that many tokens every turn are prohibitive.

You can summarize video as text, and keep only the summary in the context. You can calculate embeddings and do RAG-like lookup. LLMs are quite good at both feature summarization and using function-calling to trigger complex RAG queries. But both of those approaches are complicated to engineer.

Ultimately, the biggest lever is context caching. All the SOTA API providers offer some support for caching. None of today's caching features are perfect, yet, for voice AI use cases. We expect caching APIs to improve this year, as multimodal, multi-turn conversation use cases get more attention from people training SOTA models.

5. Using multiple AI models

Today's production voice AI agents use multiple deep learning models in combination.^[43]

As we've discussed, the typical voice AI processing loop transcribes the user's voice with a speech-to-text model, passes the transcribed text to an LLM to generate a response, then performs a text-to-speech step to generate the agent's voice output.

Many production voice agents today use multiple models in much more complex ways than just this simple, linear loop.

5.1. Using several fine-tuned models

Most voice AI agents use a SOTA^[44] model from OpenAI, Google, Anthropic, or Meta. Using the newest, best-performing models is important because voice AI workflows generally are right at the edge of the jagged frontier of model capability. Voice agents need to be able to follow complex instructions, participate in open-ended conversations with people in a natural way, and use functions and tools reliably.

But for some specialized use cases, it can make sense to fine-tune models for different states of a conversation. A fine-tuned model can be smaller, faster, and cheaper to run than a large model while still performing equally well (or better) on specific tasks.

Imagine an agent that assists with parts ordering from a very large industrial supply catalog. For this task, you might train several different models, each one focused on a different category: plastic materials, metal materials, fasteners, plumbing, electrical, safety equipment, etc.

Fine-tuned models can generally "learn" things in two important categories:

1. Embedded knowledge — models can learn facts.
2. Response patterns — models can learn to transform data in specific ways, which also includes learning conversational patterns and flows.

Our hypothetical industrial supply company has extensive raw data:

• A very large knowledge base consisting of data sheets, manufacturer recommendations, prices, and internal data about every part in the catalog.
• Text chat logs, email chains, and transcribed phone conversations with human support agents.

Figure 5.a: Using fine-tuned models for specific conversation topics. A variety of architectural approaches are possible. In this example, at the beginning of each conversation turn a router LLM classifies the full context.

Turning this raw data into data sets for fine-tuning models is a large job, but tractable. The required data cleaning, data set creation, model training, and model evaluation are all well-understood problems.

One important note: don't jump straight to fine-tuning — start with prompt engineering.

Prompting can almost always achieve the same task results as fine-tuning. The advantage of fine-tuning is the ability to use a smaller model, which can translate to faster inference and lower cost.^[45]

With prompting, you can get started much more easily and iterate much more quickly than you can with fine-tuning.^[46]

When initially exploring how to use different models for different conversation states, think of your prompts as miniature "models." You are teaching the LLM what to do by crafting a large, context-specific prompt.

1. For embedded knowledge, implement a search capability that can pull information from your knowledge base and assemble search results into an effective prompt. For more on this, see the 9. Rag and memory section , below.
2. For response patterns, embed examples of how you expect the model to respond to different questions. Sometimes, just a few examples are enough and a large model will generalize shockingly well. Sometimes, you will need lots of examples — 100 or more.

5.2. Performing async inference tasks

Sometimes you want to use an LLM for a task that will take a relatively long time to run. Remember that in our core conversation loop we're aiming for response times under a second. If a task will take longer than that, you have two choices:

1. Tell the user what's happening and ask them to wait. Please hold on while I look that up for you …"
2. Perform the longer task asynchronously, allowing the conversation to continue while it's happening in the background. "I'll look that up for you. While I do that, do you have any other questions?"

If you're performing an inference task asynchronously, you might choose to use a different LLM for that specific task. (Since it's decoupled from the core conversation loop.) For example, you might use an LLM that is slower than would be acceptable for voice responses.

The amazing recent progress in reasoning models^[47] expands what we can ask LLMs to do. Reasoning models are not a great fit for voice AI use cases, though, because they spend significant time producing thinking tokens before they emit usable output. Using these models as async parts of a multi model voice AI architecture can work well, though.

Async inference is usually triggered by an LLM function call. A simple approach is to define two functions.

• perform_async_inference() — This is called by the LLM when it decides that any long-running inference task should run. You describe when to call this function in your tool definition and prompt. You can define more than one of these. Note that you need to start the async task and then immediately return a basic started task successfully response, so that the function call request and response messages are correctly ordered in the context.^[48]
• queue_async_context_insertion() — This is called by your orchestration layer when your async inference finishes. The tricky thing here is that how you insert results into the context will depend on what you're trying to do, and on what the LLM/API you are using allows. One approach is to wait until the end of any in-progress conversation turn (including the completion of all function calls), put the async inference results into a specially crafted user message, and then run another conversation turn.

5.3. Content guardrails

Voice AI agents have several vulnerabilities that cause major issues for some use cases.

• Prompt injection
• Hallucination
• Out-of-date knowledge
• Production of inappropriate or unsafe content

Content guardrails is a general term for trying to detect all of these — protecting the LLM from both accidental and malicious prompt injection; catching bad LLM output before it is sent to users.

Using a specific model (or models) for guardrails has a couple of potential advantages:

• Small models can be a good fit for guardrails and safety monitoring. Identifying problematic content can be a relatively specialized task. (In fact, for prompt injection mitigation specifically, you don't necessarily want a model that can be prompted in a fully general way.)
• Using a different model for guardrail work has the advantage that it won't have exactly the same weaknesses as your main model. At least in theory.

Several open source agent frameworks have guardrails components.

• llama-guard is part of Meta's llama-stack
• NeMO Guardrails is an open-source toolkit for adding programmable guardrails to LLM-based conversational applications

Figure 5.b: Five types of guardrails supported by NVIDIA's NeMo Guardrails framework. Diagram from NeMo Guardrails documentation.

Both of these frameworks were designed with text chat in mind, not voice AI. But both have useful ideas and abstractions and are worth looking at if you are thinking about guardrails, safety, and content moderation.

It's worth noting that LLMs are much, much better at avoiding all of these issues than they were a year ago.

Hallucination in general is not a major issue any more with the newest models from the large labs. The only category of hallucination we still regularly see is the LLM "pretending" to call a function, but not actually doing so. And that's mostly addressable with prompting. (Though you need good evals to be sure there aren't cases where this happens with your prompts. Multi-turn conversations really stress LLM function calling abilities).

Google's APIs offer search grounding as a built-in tool, and we expect other labs to follow suit this year. Search grounding eliminates most out-of-date knowledge issues.

All of the APIs from the major labs have very good content safety filters.

Prompt injection mitigation is also much better than it was a year ago, but the surface area of potential prompt injection attacks expands as LLMs gain new capabilities. For example, prompt injection from text in images is now an issue.

As a very, very general guideline: today in voice AI use cases you are unlikely to see occurrences of accidental prompt injection caused by normal user behavior. But it is definitely possible to steer LLM behavior in ways that subvert system instructions, solely through user input. It's important to test your agents with this in mind. In particular, it's very important to sanitize and cross-check LLM-generated input to any functions that access backend systems.

5.4. Performing single inference actions

For AI engineers, learning how to leverage LLMs is an ongoing process. Part of that process is a mental shift in how we think about these new tools. When we first started using LLMs, most of us thought about them through the lens, what are language models uniquely capable of? But LLMs are general-purpose tools. They are good at a very broad range of information processing tasks.

In a voice agent context, we always have a code path set up to perform LLM inference! We don't need to limit ourselves to using the LLM only for the core conversation loop.

For example:

• Any time you reach for a regular expression, you can probably write a prompt instead.
• Post-processing LLM output is often useful. For example, you might want to generate output in two formats: text for display in a UI and voice for the interactive conversation. You can prompt the conversation LLM to generate nicely formatted markdown text, then prompt the LLM again to shorten and reformat the text for voice generation.^[49]
• Recursion is powerful.^[50] You can do things like have an LLM generate a list, and then call the LLM again to perform operations on each element of the list.
• It turns out that you often want to summarize multi-turn conversations. LLMs are fantastic, steerable, summarizers. More on this in the 6. Scripting and instruction following section, below.

Many of these emerging code patterns look like either:

1. (λx. LLM(prompt_B, LLM(prompt_A, x)))(context), or
2. (λx. LLM(prompt_B, f(LLM(prompt_A, x))))(context)

Or, in plain language, the model using the model as a tool.

This is such a powerful idea that we expect to see lots of people work on this in 2025. Agent frameworks can build support for this into their library-level APIs. Models can also be trained to perform inference recursively in a way roughly analogous to training them to call functions and perform code execution.

5.5. Towards self-improving systems

When we access a SOTA "model" via an API, we are not accessing a single artifact. The systems behind the APIs use various routing, multi-stage processing, and distributed systems techniques to perform inference fast, flexibly, reliably, and at extraordinary scale. These systems are always being tweaked. Weights are updated, of course. But also, low level inference implementations get more efficient all the time. Systems architectures evolve.

The big labs are continually shortening the feedback loop between how users use their APIs and how they implement inference and other capabilities.

These ever-faster feedback loops are a big part of the amazing macro-level AI progress happening these days.

Taking inspiration from this, what could micro-level feedback loops in our agent-level code look like?

Can we also build specific scaffolding that improves agent performance during a conversation?

• Monitor how often the agent interrupts the user before they are finished talking, and adjust the VAD timeout dynamically.
• Monitor how often the user interrupts the agent and adjust LLM response length dynamically.
• Look for patterns that indicate a user is having trouble understanding the conversation — maybe the user is not a native speaker. Adjust the conversation style or offer to switch languages.

Can you think of other ideas?

6. Scripting and instruction following

A year ago, it was pretty exciting just to be able to build voice agents capable of open-ended conversations at natural human latency.

Now we're deploying voice AI agents to do complicated, real-world tasks.

We need to instruct the LLM to accomplish specific goals during a session. Often, we also need the LLM to perform sub-tasks in a specific order.

For example, in a healthcare patient intake workflow, we want the agent to:

• Verify the patient's identity before doing anything else.
• Make sure to ask what medications the patient is currently taking.
• If the patient says they are taking medicine X, ask a particular follow-up question.
• Etc …

We refer to crafting step-by-step workflows as scripting.

Instruction following is the ability of the LLM to reliably execute tasks based on information in the system prompt and context.

One lesson from the last year of voice AI development is that it's often impossible to achieve agent reliability with prompt engineering alone.

There's only so much detail that can be packed into a single prompt. Relatedly, as the context grows in a multi-turn conversation, the LLM has more and more information to keep track of, and instruction following accuracy declines.

Many voice AI developers are moving towards a state machine approach to building complex workflows. Instead of writing a long, detailed system instruction to guide the LLM, we can design a series of states. Each state is:

• A system instruction and tools list
• A conversation context
• One or more exits from the current state to another state.

Each state transition is an opportunity to:

• Update the system instruction and tools list.
• Summarize or modify the context.^[51]

The state machine approach works well because a shorter, more focused system instruction, tools list, and context significantly improves LLM instruction following.

The challenge is to find the right balance between on the one hand leveraging the LLM's ability to have an open-ended, natural conversation, and on the other to make sure the LLM reliably executes the important parts of the job to be done.

Pipecat Flows is a library built on top of Pipecat that helps developers create workflow state machines.

The state diagram is represented as JSON and can be loaded into a Pipecat process. There's a graphical editor for creating these JSON state diagrams.

Figure 6.a: Pipecat Flows graphical editor

Pipecat Flows and state machines are seeing a lot of developer adoption right now. But there are other interesting ways to think about building abstractions for complex workflows.

One active area of AI research and development is multi-agent systems. You could think of a workflow as a multi-agent system, instead of as a series of states to traverse.

One of Pipecat's core architectural components is the parallel pipeline. A parallel pipeline allows you to split the data going through the processing graph and operate on it twice (or more). You can block and filter data. You can define many parallel pipelines. You could think of a workflow as a set of gated, coordinated parallel pipelines.

The rapid evolution of voice AI tooling is exciting, and highlights how early we are in figuring out the best way to build these new kinds of programs.

7. Voice AI Evals

One very important type of tooling is the eval, short for evaluation.

Eval is a machine learning term for a tool or process that assesses the capabilities of a system and judges its quality.

7.1. Voice AI evals are different from software unit tests

If you're coming from a traditional software engineering background, you're used to thinking about testing as a (mostly) deterministic exercise.

Voice AI requires tests that are different from traditional software engineering. Voice AI outputs are non-deterministic. The inputs for testing voice AI are complex, branching, multi-turn conversations.

Instead of testing that a specific input produces a specific output (f(x) = y), you will need to run probabilistic evals – lots of test runs to see how often a certain type of event happens.^[52] For some tests, getting a class of cases right 8/10 times is acceptable, for others accuracy needs to be 9.99/10.

Instead of just having one input, you will have many: all of the user responses. This makes it very hard to test voice AI applications without attempting to simulate user behavior.

Finally, voice AI tests have non-binary results and will rarely yield a definitive green check or red x like traditional unit tests do. Instead, you will need to review results and decide on tradeoffs.

7.2. Failure modes

Voice AI apps have particular shapes and failure modes that influence how we design and run evals. Latency is critical (so latency that would be acceptable in a text-mode system is a failure for a voice system). They are multi-model (poor performance could be caused by TTS instability rather than LLM behavior, for example).

Some areas that frequently present challenges today are:

• Latency of time to first speech and time to agent response
• Transcription errors
• Understanding and verbalizing addresses, emails, names, phone numbers
• Interruptions

7.3. Crafting an eval strategy

A rudimentary eval process can be as simple as a spreadsheet with prompts and test cases.

One typical approach is to run each prompt whenever you test a new model or change a major part of your system, using an LLM to judge whether the responses fall within some definition of expected parameters.

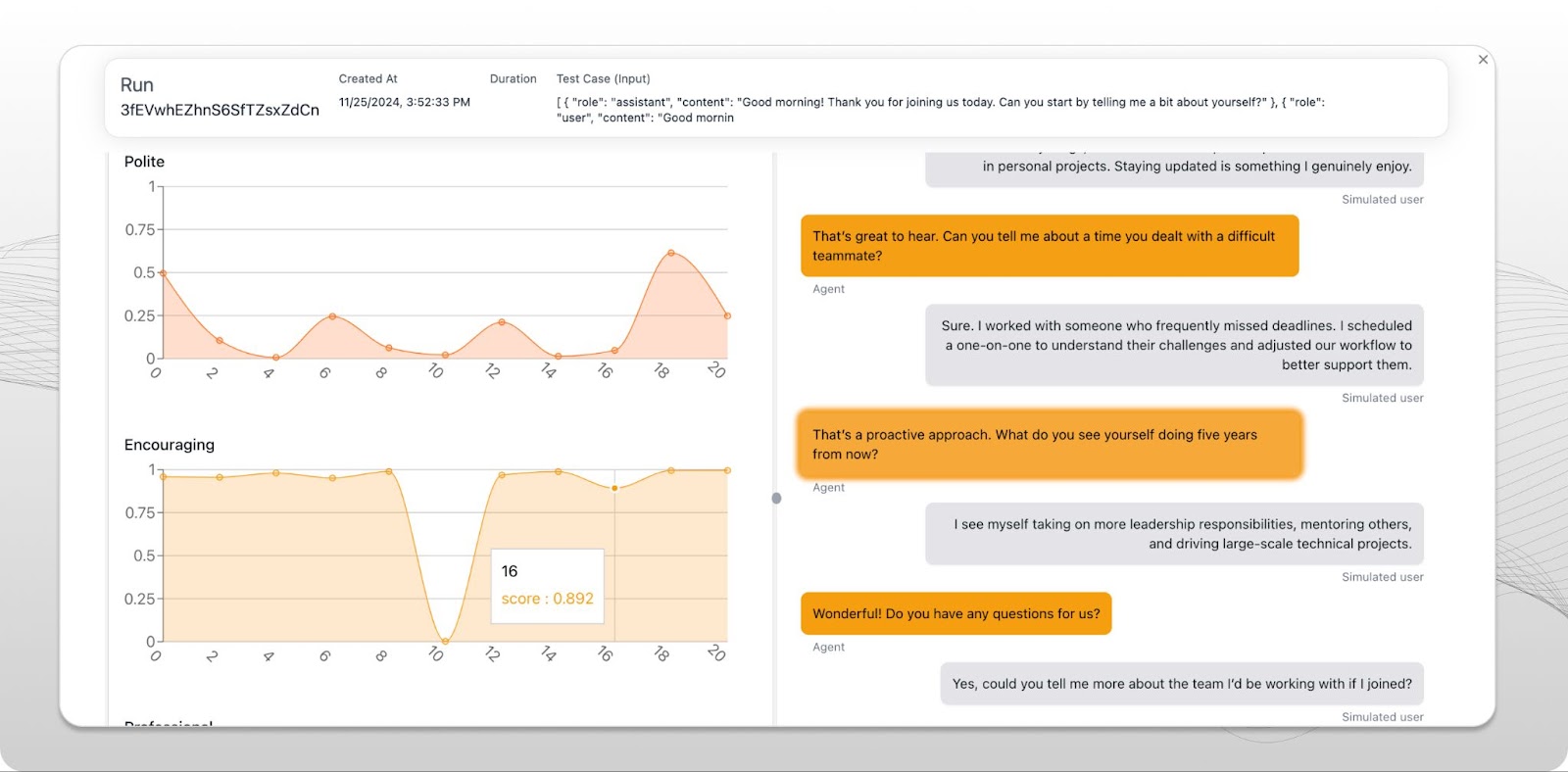

Figure 7.a: A screenshot from the Coval evals platform UI

Having a basic eval is much better than not having any evals at all. But investing in evals – having really good evals – becomes critical as you start to operate at scale.

Evaluation platforms that offer sophisticated tooling for voice AI evals are just beginning to emerge. Coval is a startup building testing and eval tools for voice and chat agents. Coval's simulation-oriented approachis strongly influencing the evolution of evals in the voice AI ecosystem.

Coval and other evaluation platforms can help with:

• Prompt iteration.
• Off the shelf metrics for audio, workflow, function calling, and semantic evaluation of conversations.
• Hillclimbing on problem areas (for example, making your agents better at handling interruptions).
• Regression testing (to be sure when you fix one problem area you don't introduce regressions in other previously solved problem areas).
• Tracking performance changes over time, both as changes are made by developers, and across user cohorts.

8. Integrating with telephony infrastructure

Most of the fastest growing voice AI use cases today involve telephone calls. New, generative AI voice agents are answering phone calls and making phone calls at scale today.

Some of this is happening in traditional call centers. Call centers mostly view voice AI as a technology that can improve "deflection rates" – the percentage of calls that can be handled by automation rather than human agents. This makes the ROI for adopting voice AI clear. If the per-minute cost of an LLM is cheaper than the per-minute cost of a human agent, the buying decision is easy.^[53]

A couple of interesting things are happening that accelerate adoption, though, beyond the simple ROI calculation.

Voice AI agents are scalable in ways that a human staff isn't. Once you have voice AI in place, wait times during high-volume periods go down.

And LLMs can sometimes do a better job than human agents because we're giving them better tools. In many customer support situations, human agents have to deal with multiple legacy backend systems. Finding information in a timely fashion can be a challenge. When we deploy voice AI into that same situation, we have to build API-level access to these legacy systems. New LLM-plus-API layers are being built to enable the technology transition to voice AI.

It's clear that generative AI is going to completely reshape the call center landscape over the next few years.

Outside the call center, voice AI is changing how small businesses field phone calls, and how they use phone calls for information discovery and coordination. We talk every day to startups building specialized AI telephony solutions for every business vertical that you've ever heard of.

People in this space often joke that pretty soon humans won't make, or receive, phone calls at all. The phone calls will all be AI-to-AI. There's some truth to this! The trendline is real.

If you're interested in telephony for voice AI, there are a few acronyms and common ideas you should be familiar with.

• PSTN is the public, switched, telephone network. If you need to interact with a real phone that has a phone number, you'll need to work with a PSTN platform. Twilio is a PSTN platform that almost every developer has heard of.
• SIP is a specific protocol used for IP telephony, but in a general sense SIP is used to refer to telephone interconnects between systems. If you're interfacing with a call center tech stack, for example, you'll need to use SIP. You can work with a SIP provider, or host your own SIP servers.
• DTMF tones are the keypress sounds used to navigate telephone menus. Voice agents need to be able to send DTMF tones to interact with real-world telephone systems. LLMs are pretty good at dealing with phone trees. You just need to do a little bit of prompt engineering and define functions that send DTMF tones.
• Voice agents often need to execute call transfers. In a simple transfer, the voice AI exits the session by calling a function that triggers a call transfer.^[54] A warm transfer is a hand-off from one agent to another, in which the agents talk to each other before transferring the caller to the second agent. Voice AI agents can do warm transfers, just like humans can. The voice agent starts out talking to the human caller, then puts the human caller on hold and has a conversation with the new human agent being brought into the call, then connects the human caller to the human agent.

9. RAG and memory

Voice AI agents often need access to information from external systems. You might need to:

• Incorporate information about the user.
• Retrieve previous conversation history.
• Look up information in a knowledge base.
• Perform a web search.
• Do a realtime inventory or order status check.

All of these fall under the category of RAG – retrieval augmented generation. RAG is the general AI engineering term for combining information retrieval and LLM prompting.

The "simplest possible RAG" for a voice agent is to look up information about a user when the voice agent starts, then merge that information into the LLM system instructions.

user_info = fetch_user_info(user_id)
system_prompt_base = "You are a voice AI assistant..."
system_prompt = (
  system_prompt_base
  + f"""
The name of the patient is {user_info["name"]}.
The patient is {user_info["age"]} years old.
The patient has the following medical history: {user_info["summarized_history"]}.
"""
)

Figure 9.a: Simple RAG – perform a lookup at the beginning of the session

RAG is a deep topic and an area of rapid change.^[55] Techniques range from the relatively simple approach above that just uses basic lookups and string interpolation, to systems that organize very large amounts of semi-structured data using embeddings and vector databases.

Often, an 80/20 approach gets you a very long way. If you have an existing knowledge base, use the APIs you already have. Write simple evals so you can test a few different formats for injecting lookup results into the conversation context. Deploy to production, then monitor how well this works with real-world users.

async def start_query_order_system(function_name, llm, context):
  """Push a speech frame. This is handy when the LLM response might take a while."""
  await llm.push_frame(TTSSpeakFrame("Please hold on while I look that order up for you."))

async def query_order_system(function_name, tool_call_id, args, llm, context, result_callback):
 query_result = order_system.get(args["query"])
 await result_callback({
  "info": json.dumps({
   "lookup_success": True,
   "order_status": query_result["order_status"],
   "delivery_date": query_result["delivery_date"],
  })
 })

llm.register_function("query_order_system",
 query_order_system
 start_callback=start_query_order_system
)

Figure 9.b: RAG during a session. Define a function for the LLM to call when information lookup is required. In this example, we also emit a pre-set spoken phrase to let the user know the system will take a few seconds to respond.

pipeline = Pipeline(
 [
   transport.input(),
   context_aggregator.user(),
   llm,
   tts,
   transport.output(),
   context_aggregator.assistant(),
 ]
)

As always, latency is a bigger challenge with voice AI than for non-voice AI systems. When an LLM makes a function call request, the extra inference call adds to latency. Looking up information in external systems can be slow, too. It's often useful to trigger a simple speech output before executing the RAG lookup, to let the user know that work is in progress.

More broadly, memory across sessions is a useful capability. Imagine a voice AI personal assistant that needs to remember everything you talk about. Two general approaches are:

1. Save each conversation to persistent storage. Test a few approaches to loading conversations into the context. For example, a strategy that works well for the personal assistant use case: always load the most recent conversation in full at agent startup, load summaries of the most recent N conversations, and define a lookup function the LLM can use to load older conversations dynamically as needed.
2. Save each message in the conversation history separately in a database, along with metadata about the message graph. Index every message (perhaps using semantic embeddings). This allows you to build branching conversation histories dynamically. You might want to do this if your app makes heavy use of image input (LLM vision). Images take up a lot of context space!^[56] This approach also allows you to build branching UIs, which is a direction that AI app designers are just starting to explore.

10. Hosting and Scaling

Voice AI agents are complex distributed systems. They need to:

• Maintain low-latency connections to end users.
• Perform inference using multiple AI models.
• Interact with back-end systems.
• Scale up and down based on demand.

Let's talk about how to host and scale voice AI agents.

10.1. Hosting options

There are three main approaches to hosting voice AI agents:

1. Use a voice AI platform.
2. Use a serverless platform.
3. Build and manage your own infrastructure.

10.1.1 Voice AI platforms

Voice AI platforms are the easiest way to get started. They handle all of the infrastructure complexity for you. You just need to write the code that defines your agent's behavior.

The tradeoff is that you're locked into the platform's architecture and pricing model. And you may not have as much control over the details of how your agent works.

Some voice AI platforms are:

• Retell – A platform for building voice AI agents that can make and receive phone calls.
• Vapi – A platform for building voice AI agents that can make and receive phone calls.
• Vocode – An open source framework for building voice AI agents.

10.1.2 Serverless platforms

Serverless platforms are a good middle ground. They handle the infrastructure complexity, but give you more control over the details of how your agent works.

The tradeoff is that you need to write more code. You need to handle the details of the voice AI processing loop yourself.

Some serverless platforms that work well for voice AI are:

• Cloudflare Workers – A serverless platform with good support for WebSockets and WebRTC.
• AWS Lambda – A serverless platform with good support for WebSockets and integration with AWS services.
• Google Cloud Functions – A serverless platform with good support for WebSockets and integration with Google Cloud services.

10.1.3 Self-hosted

Self-hosted infrastructure gives you the most control. You can customize every aspect of how your agent works.

The tradeoff is that you need to manage the infrastructure yourself. This is a significant ongoing operational burden.

If you're building a voice AI agent that needs to handle a lot of concurrent sessions, you'll need to think about how to scale your infrastructure. This is a complex topic, but here are some general guidelines:

• Use a container orchestration system like Kubernetes to manage your infrastructure.
• Use a load balancer to distribute traffic across your infrastructure.
• Use a database to store session state.
• Use a message queue to handle asynchronous tasks.

10.2. Scaling voice AI

Voice AI agents are stateful. Each session has its own conversation context, which needs to be maintained across multiple turns.

This makes scaling voice AI agents more complex than scaling stateless web services.

There are two main approaches to scaling voice AI agents:

1. Sticky sessions
2. Shared state

10.2.1 Sticky sessions

With sticky sessions, each user is assigned to a specific server for the duration of their session. The server maintains the session state in memory.

This approach is simple and efficient. But it has some drawbacks:

• If a server fails, all of the sessions on that server are lost.
• It's hard to scale up and down based on demand.
• It's hard to deploy new versions of your code without disrupting active sessions.

10.2.2 Shared state

With shared state, session state is stored in a database or other shared storage system. Any server can handle any request for any session.

This approach is more complex, but it has some advantages:

• If a server fails, sessions can be handled by other servers.
• It's easier to scale up and down based on demand.
• It's easier to deploy new versions of your code without disrupting active sessions.

The tradeoff is that you need to serialize and deserialize session state for every request. This adds latency and complexity.

In practice, most voice AI systems use a hybrid approach. They use sticky sessions for the duration of a single conversation turn, but store session state in a shared database between turns.

10.3. Observability

Voice AI agents are complex distributed systems. They need good observability to help you understand what's happening and diagnose problems.

There are three main aspects of observability:

1. Logging
2. Metrics
3. Tracing

10.3.1 Logging

Logging is the most basic form of observability. It's a record of what happened in your system.

For voice AI agents, you should log:

• Session start and end events.
• User and agent messages.
• Function calls and their results.
• Errors and exceptions.

It's also useful to log the full conversation context for each turn. This makes it easier to debug problems and understand what happened in a session.

10.3.2 Metrics

Metrics are numerical measurements of your system's behavior. They help you understand how your system is performing and identify trends.

For voice AI agents, you should track metrics like:

• Session count and duration.
• Voice-to-voice latency.
• LLM inference latency.
• Speech-to-text and text-to-speech latency.
• Function call count and latency.
• Error rates.

10.3.3 Tracing

Tracing is a way to follow a request through your system. It helps you understand how different components interact and identify bottlenecks.

For voice AI agents, you should trace:

• The path of each user message through your system.
• The time spent in each component.
• The dependencies between components.

OpenTelemetry is a good framework for implementing tracing in your voice AI agent.

Figure 10.a: Target latency metrics for voice AI agents

11. What's coming in 2025

Voice AI is evolving rapidly. Here are some trends we expect to see in 2025:

11.1. Speech-to-speech models

Speech-to-speech models are going to get much better in 2025. We expect to see:

• Lower latency
• Better voice quality
• More natural conversation flow
• Better handling of interruptions

The OpenAI Realtime API and Google Multimodal Live API are just the beginning. We expect to see these APIs mature and new competitors emerge.

11.2. Multimodal agents

Multimodal agents that can see, hear, and speak are going to become more common in 2025. We expect to see:

• Better integration of vision and speech
• More natural conversation about visual content
• Better handling of complex visual scenes

The ability to see and understand the world is going to make voice AI agents much more useful in many contexts.

11.3. Specialized models

We expect to see more specialized models for voice AI in 2025. These might include:

• Models optimized for specific domains (healthcare, finance, etc.)
• Models optimized for specific tasks (scheduling, customer support, etc.)
• Models optimized for specific languages and dialects

These specialized models will be smaller, faster, and more accurate than general-purpose models for their specific domains.

11.4. Better tooling

Voice AI tooling is going to get much better in 2025. We expect to see:

• Better frameworks for building voice AI agents
• Better testing and evaluation tools
• Better observability and monitoring tools
• Better deployment and scaling tools

These tools will make it easier to build, test, deploy, and operate voice AI agents at scale.

11.5. More natural conversations

Voice AI agents are going to become more natural conversationalists in 2025. We expect to see:

• Better handling of interruptions
• More natural turn-taking
• Better understanding of context and intent
• More natural voice quality and prosody

These improvements will make voice AI agents feel more like talking to a human and less like talking to a machine.

11.6. Broader adoption

Voice AI is going to be adopted in more contexts in 2025. We expect to see:

• More voice AI in customer support
• More voice AI in healthcare
• More voice AI in education
• More voice AI in personal assistants
• More voice AI in gaming and entertainment

As voice AI becomes more capable and more natural, it's going to be used in more and more contexts.

11.7. Conclusion

Voice AI is at an exciting inflection point. The technology is good enough to be useful in many contexts, but it's still evolving rapidly.

If you're building voice AI agents today, you're at the forefront of a technology that's going to transform how we interact with computers and with each other.

We hope this guide has been helpful in understanding the state of the art in voice AI and how to build voice AI agents that work well in the real world.

Good luck with your voice AI projects!

Contributors

Lead Author

Kwindla Hultman Kramer

Contributing Authors^[57]

Aleix Conchillo Flaqué, Mark Backman, Moishe Lettvin, Kwindla Hultman Kramer, Jon Taylor, Vaibhav159, chadbailey59, allenmylath, Filipi Fuchter, TomTom101, Mert Sefa AKGUN, marcus-daily, vipyne, Adrian Cowham, Lewis Wolfgang, Filipi da Silva Fuchter, Vanessa Pyne, Chad Bailey, Dominic, joachimchauvet, Jin Kim, Sharvil Nanavati, sahil suman, James Hush, Paul Kompfner, Mattie Ruth, Rafal Skorski, mattie ruth backman, Liza, Waleed, kompfner, Aashraya, Allenmylath, Ankur Duggal, Brian Hill, Joe Garlick, Kunal Shah, Angelo Giacco, Dominic Stewart, Maxim Makatchev, antonyesk601, balalo, daniil5701133, nulyang, Adi Pradhan, Cheng Hao, Christian Stuff, Cyril S., DamienDeepgram, Dan Goodman, Danny D. Leybzon, Eric Deng, Greg Schwartz, JeevanReddy, Kevin Oury, Louis Jordan, Moof Soup, Nasr Maswood, Nathan Straub, Paul Vilchez, RonakAgarwalVani, Sahil Suman, Sameer Vohra, Soof Golan, Vaibhav-Lodha, Yash Narayan, duyalei, eddieoz, mercuryyy, rahulunair, roey, vatsal, vengadanathan srinivasan, weedge, wtlow003, zzz

Design

Sascha Mombartz
